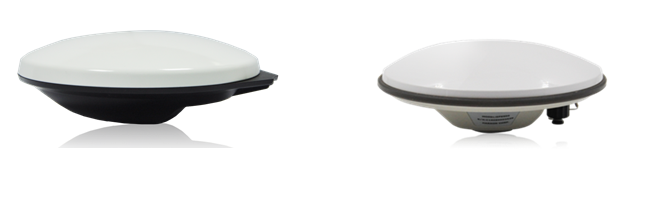

Survey Antennas

Model Coverage Gain Operating Volatge (VDC) Operating Current (mA) Mount Size Weight Connector Download
HX-CSX601A L1, L2, L5, G1, G2, G3, B1, B2, B3, E1, E6, E5a, E5b, SBAS, L-Band 40 3.3 to 12 45 BSW5/8''-11 screw, 12-14mm φ173.4×62.6mm 456g TNC Female
HX-GPS1000 L1, L2, L5, G1,G2, G3, B1, B2, B3, E1, E6, E5a, E5b, L-Band 40 3.3 to 12 45 BSW5/8''-11 screw, 12-14mm φ152*62.2mm 374g TNC Female
HX-GSP600 L1, L2, L5, G1,G2, B1, B2, B3, L-Band 40 3.3 to 12 45 BSW5/8''-11 screw, 12-14mm φ152*62.2mm 374g TNC Female
HX-GSP800 L1, L2, L5, G1,G2, L-Band 40 3.3 to 12 45 BSW5/8''-11 screw, 12-14mm φ152*62.2mm 374g TNC Female

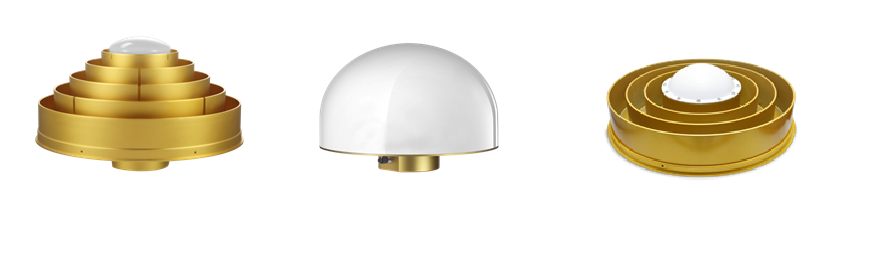

Choke Ring Antenna

Model Coverage Gain Operating Voltage (VDC) Operating Current (mA) Mount Size Weight Connector Download
HX-CGX601A L1, L2, L5, G1, G2, B1, B2, B3, E1, E2, E6, E5a, E5b, L-Band 50 3.3 to 12 60 BSW5/8''-11 screw, depth≥22mm φ379*312mm 9500g TNC Female
HX-CGX606A L1, L2, L5, G1, G2, B1, B2, B3, E1, E2, E6, E5a, E5b, L-Band 50 3.3 to 12 60 BSW5/8''-11 screw, depth≥22mm φ332*261mm ≤5600g TNC Female
HX-CG7601A L1, L2, G1,G2, B1, B2, B3 50 3.3 to 12 60 BSW5/8''-11 screw, depth≥22mm φ332*261mm ≤5600g TNC Female

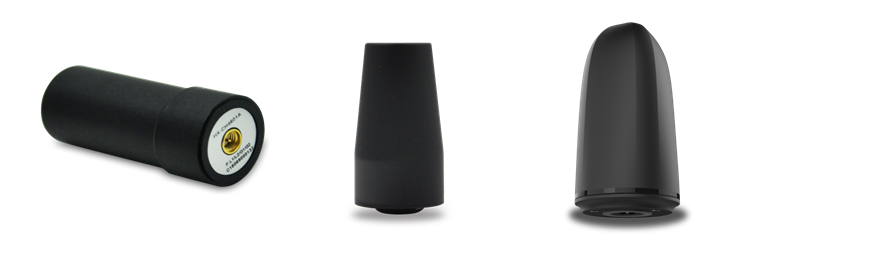

Helix Antenna

Model Coverage Gain Operating Voltage (VDC) Operating Current (mA) Mount Size Weight Connector Download
HX-CH3602A L1, G1, B1 33 3.3 to 12 35 customers design own installation φ27.5*59mm 19g SMA Male
HX-CH4601A L1, L2, G1,G2 33 3.3 to 12 35 customers design own installation φ27.5*59mm 19g SMA Male
HX-CH6601A L1, L2, G1, G2, B1, B2 33 3.3 to 12 35 customers design own installation φ27.5*59mm 19g SMA Male
HX-CH7603A L1, L2, G1, G2, B1, B2, B3 33 3.3 to 12 35 3*3/32"-48*DP6mm φ40*75.2mm 38g SMA Male
HX-CHX600A L1, L2,G1,G2, B1, B2, B3, E1, E6, E5b, L-Band 33 3.3 to 12 35 3*3/32"-48*DP6mm φ40*75.2mm 38g SMA Male

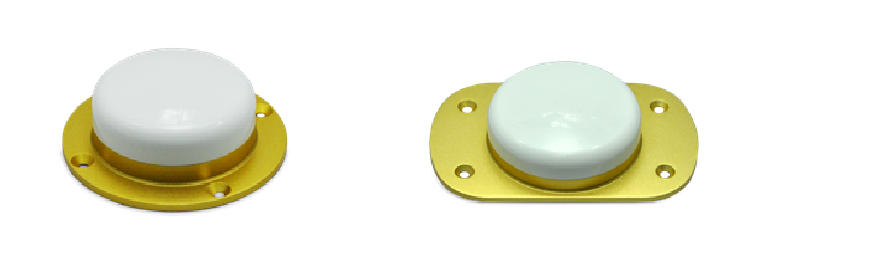

GNSS Aviation Antenna

Model Coverage Gain Operating Voltage (VDC) Operating Current (mA) Mount Size Weight Connector Download
HX-CAX601A L1, L2, L5, G1,G2, B1, B2, B3, E1, E5ab, L-Band 36 3.3 to 12 45 4 M4 screws installation φ90*41.5mm 137g TNC Female
HX-CA7607A L1, L2, G1,G2, B1, B2, B3 36 3.3 to 12 45 4 M4 screws installation φ90*41.5mm 137g TNC Female
HX-CA7606A L1, L2, G1,G2, B1, B2, B3 36 3.3 to 12 45 4 M4 screws installation 115*71.8*41.5mm 137g TNC Female
HX-CA3603A L1, G1, B1 36 3.3 to 12 45 4 M4 screws installation 115*71.8*41.5mm 137g TNC Female

Base Radio

Model Frequency Modulation Output Power Dimension Data Interface Weight (Kg) Download
HX-DU8608D kit 410-470MHz GMSK 35W 186×140×73mm Lemo mini 5pin TNC Female
HX-DU8616D SE 410-470MHz GMSK/4FSK 35W 175×130×86.5mm Lemo mini 5pin TNC Female
HX-DU8616D 410-470MHz GMSK/4FSK 35W 175×130×86.5mm Lemo mini 5pin TNC Female
HX-DU8616D PRO 410-470MHz GMSK/4FSK 35W 175×130×86.5mm Lemo mini 5pin TNC Female
HX-DU1603D 410-470MHz GMSK 2W 150×83×31mm Lemo mini 5pin TNC Female

Survey Antenna

Survey Antenna

>
Model Coverage Gain Operating Volatge (VDC) Operating Current (mA) Mount Size Weight Connector Download
HX-CSX601A L1, L2, L5, G1, G2, G3, B1, B2, B3, E1, E6, E5a, E5b, SBAS, L-Band 40 3.3 to 12 45 BSW5/8''-11 screw, 12-14mm φ173.4×62.6mm 456g TNC Female
HX-GPS1000 L1, L2, L5, G1,G2, G3, B1, B2, B3, E1, E6, E5a, E5b, L-Band 40 3.3 to 12 45 BSW5/8''-11 screw, 12-14mm φ152*62.2mm 374g TNC Female
HX-GSP600 L1, L2, L5, G1,G2, B1, B2, B3, L-Band 40 3.3 to 12 45 BSW5/8''-11 screw, 12-14mm φ152*62.2mm 374g TNC Female
HX-GSP800 L1, L2, L5, G1,G2, L-Band 40 3.3 to 12 45 BSW5/8''-11 screw, 12-14mm φ152*62.2mm 374g TNC Female

Choke Ring Antenna

Choke Ring Antenna

Model Coverage Gain Operating Volatge (VDC) Operating Current (mA) Mount Size Weight Connector Download
HX-CGX601A L1, L2, L5, G1, G2, B1, B2, B3, E1, E2, E6, E5a, E5b, L-Band 50 3.3 to 12 60 BSW5/8''-11 screw, depth≥22mm φ379*312mm 9500g TNC Female
HX-CGX606A L1, L2, L5, G1, G2, B1, B2, B3, E1, E2, E6, E5a, E5b, L-Band 50 3.3 to 12 60 BSW5/8''-11 screw, depth≥22mm φ332*261mm ≤5600g TNC Female
HX-CG7601A L1, L2, G1,G2, B1, B2, B3 50 3.3 to 12 60 BSW5/8''-11 screw, depth≥22mm φ332*261mm ≤5600g TNC Female

Helix Antenna

Helix Antenna

Model Coverage Gain Operating Volatge (VDC) Operating Current (mA) Mount Size Weight Connector Download
HX-CH3602A L1, G1, B1 33 3.3 to 12 35 customers design own installation φ27.5*59mm 19g SMA Male
HX-CH4601A L1, L2, G1,G2 33 3.3 to 12 35 customers design own installation φ27.5*59mm 19g SMA Male
HX-CH6601A L1, L2, G1, G2, B1, B2 33 3.3 to 12 35 customers design own installation φ27.5*59mm 19g SMA Male
HX-CH7603A L1, L2, G1, G2, B1, B2, B3 33 3.3 to 12 35 3*3/32"-48*DP6mm φ40*75.2mm 38g SMA Male
HX-CHX600A L1, L2,G1,G2, B1, B2, B3, E1, E6, E5b, L-Band 33 3.3 to 12 35 3*3/32"-48*DP6mm φ40*75.2mm 38g SMA Male

GNSS Aviation Antenna

GNSS Aviation Antenna

Model Coverage Gain Operating Volatge (VDC) Operating Current (mA) Mount Size Weight Connector Download
HX-CAX601A L1, L2, L5, G1,G2, B1, B2, B3, E1, E5ab, L-Band 36 3.3 to 12 45 4 M4 screws installation φ90*41.5mm 137g TNC Female
HX-CA7607A L1, L2, G1,G2, B1, B2, B3 36 3.3 to 12 45 4 M4 screws installation φ90*41.5mm 137g TNC Female
HX-CA7606A L1, L2, G1,G2, B1, B2, B3 36 3.3 to 12 45 4 M4 screws installation 115*71.8*41.5mm 137g TNC Female
HX-CA3603A L1, G1, B1 36 3.3 to 12 45 4 M4 screws installation 115*71.8*41.5mm 137g TNC Female

Base Radio

Base_Radio

Model Frequency Modulation Output Power Dimension Data Interface Weight (Kg) Download
HX-DU8608D kit 410-470MHz GMSK 35W 186×140×73mm Lemo mini 5pin 1.5Kg
HX-DU8616D SE 410-470MHz GMSK/4FSK 35W 175×130×86.5mm Lemo mini 5pin 2kg
HX-DU8616D 410-470MHz GMSK/4FSK 35W 175×130×86.5mm Lemo mini 5pin 2kg
HX-DU8616D PRO 410-470MHz GMSK/4FSK 35W 175×130×86.5mm Lemo mini 5pin 2kg
HX-DU1603D 410-470MHz GMSK 2W 150×83×31mm Lemo mini 5pin 0.56Kg

VeraPhase Antennas

Model Feed Coverage Gain Current (mA) Mount Size Weight Pre-Filter Download
VP6000 Cross Driven Dipoles Full GNSS Constellation 35 dB 35 5/8″x11 TPI female 167mm x 114.5mm <800g No
VP6000 Cross Driven Dipoles Full GNSS Constellation 50 dB 45 5/8″x11 TPI female 167mm x 114.5mm <800g No
VP6000 Cross Driven Dipoles Full GNSS Constellation 35 dB 35 5/8″x11 TPI female 820g No
VP6000 Cross Driven Dipoles Full GNSS Constellation 50 dB 45 5/8″x11 TPI female 820g No
VP6200 Cross Driven Dipoles GPS L1/L2 + GLONASS G1/G2 + BeiDou B1/B2 + Galileo E1 + L-Band 35 dB 35 5/8″x11 TPI female 167mm x 114.5mm <800g No
VP6200 Cross Driven Dipoles GPS L1/L2 + GLONASS G1/G2 + BeiDou B1/B2 + Galileo E1 + L-Band 35 dB 45 5/8″x11 TPI female 167mm x 114.5mm <800g No
VP6200 Cross Driven Dipoles GPS L1/L2 + GLONASS G1/G2 + BeiDou B1/B2 + Galileo E1 + L-Band 50 dB 35 5/8″x11 TPI female 820g No
VP6300 Cross Driven Dipoles GPS L1/L2 + GLONASS G1/G2 + BeiDou B1/B2 + Galileo E1 + L-Band 50 dB 45 5/8″x11 TPI female 820g No
VP6300 Cross Driven Dipoles GPS L1/L2/L5 + GLONASS G1/G2/G3 +Beidou B1/B2 + Galileo E1/E5a+b 35 dB 35 5/8″x11 TPI female 167mm x 114.5mm <800g No
VP6300 Cross Driven Dipoles GPS L1/L2/L5 + GLONASS G1/G2/G3 +Beidou B1/B2 + Galileo E1/E5a+b 50 dB 45 5/8″x11 TPI female 167mm x 114.5mm <800g No
VP6300 Cross Driven Dipoles GPS L1/L2/L5 + GLONASS G1/G2/G3 +Beidou B1/B2 + Galileo E1/E5a+b 35 dB 35 5/8″x11 TPI female 820g No
VP6300 Cross Driven Dipoles GPS L1/L2/L5 + GLONASS G1/G2/G3 +Beidou B1/B2 + Galileo E1/E5a+b 50 dB 45 5/8″x11 TPI female 820g No

TW7000 Family

Model Feed Coverage Gain Current (mA) Mount Size Weight Pre-Filter Download
TW7872 Dual Feed GPS L1/L2 + GLONASS G1/G2 + Galileo E1 + BeiDou B1/B2 32 dB 20 Magnetic or Screw 69mm diameter x 22mm height 180g No
TW7972 Dual Feed GPS L1/L2/L5, GLONASS G1/G2/G3, BeiDou B1/B2, Galileo E1/E5 plus L-band 32 dB 20 Magnetic or Screw 69mm diameter x 22mm height 180g No
TW8829 Dual Feed GPS L1/L2 + GLONASS G1/G2 27 dB 12 Magnetic or Screw 47.3mm diameter x 14.3mm height 52g Yes

GPS Reciever/Antennas

Model Feed Coverage Gain Current (mA) Mount Size Weight Pre-Filter Download
TW5340 Fixed GPS L1 + GLONASS G1 120 Fixed 66.5mm diameter 135g No
TW5341 Fixed GPS L1 + GLONASS G1 120 Fixed 66.5mm diameter 135g No

In Line Amplifiers

Model Description P/N Download
TW120 GPS L1, 25 dB 32-0120-xx
TW120 with N-Type connector 32-0120-14
TW125 1.2 to 1.8 Ghz, 28 dB 32-0125-xx
TW125 with N-Type connector 32-0125-14
TW125B 1 to 2 Ghz, 28dB 32-0125B-xx
TW125B with N-Type connector 32-0125B-14
TW127 Low Current / Low Voltage 1559 MHz to 1610 MHz 25 dB 32-0127-xx
TW141 1.15 to 1.75 Ghz, 40dB , mid power 32-0141-xx

Choke Ring Amplifiers

Model Description P/N Download
TW613 35dB choke ring amplifier for ALL GNSS signals with SMA connectors 32-613-00
TW615 50dB choke ring amplifier for ALL GNSS signals with SMA Connectors 32-615-00
TW633 35dB choke ring amplifier for L1/L2/L5, G1/G2/G3, E1/E5a+b/B1/B2 SMA 32-633-00
TW635 50dB choke ring amplifier for L1/L2/L5, G1/G2/G3, E1/E5a+b/B1/B2 SMA 32-635-00

Bias Tees-Signal Splitters

Model Description P/N Download
TW150 1 to 2 signal splitter- with DC pass-through (port2) 32-0150-xx
TW151 1 to 2 signal splitter- with DC Blocking 32-0151-xx
TW154 Bias Tee, 3.3 VDC out 32-0154-xx
TW155 Bias Tee, 5 VDC out 32-0155-xx

Lightening Arrestors

Model Description P/N Download
GT-TFF-AL Gas Tube Protector TNC Female/Female GT-TFF-AL
DGXZ+15TFT Silicon Diode, MOV and Gas Tube hybrid DGXZ+15TFTF-A
